800G-OSFP112

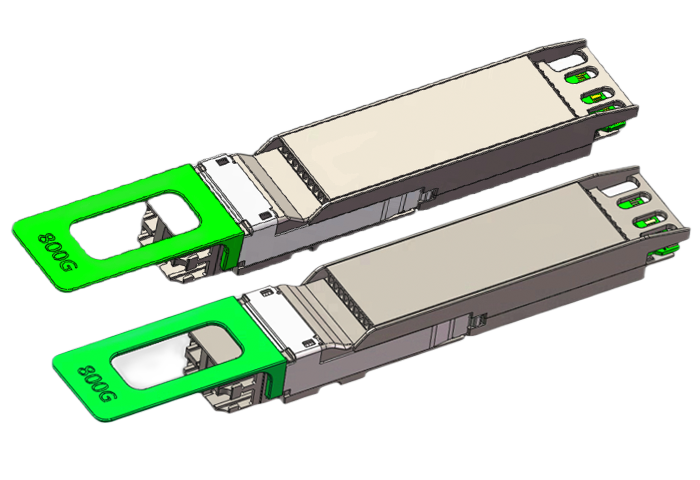

800G-2xLR4 OSFP112
800G-2xLR4 OSFP112 based on silicon photonics and EML. 8 channels of 100G-PAM4 electrical data,2 sets of 4 CWDM lanes MUX/DEMUX design,10km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.

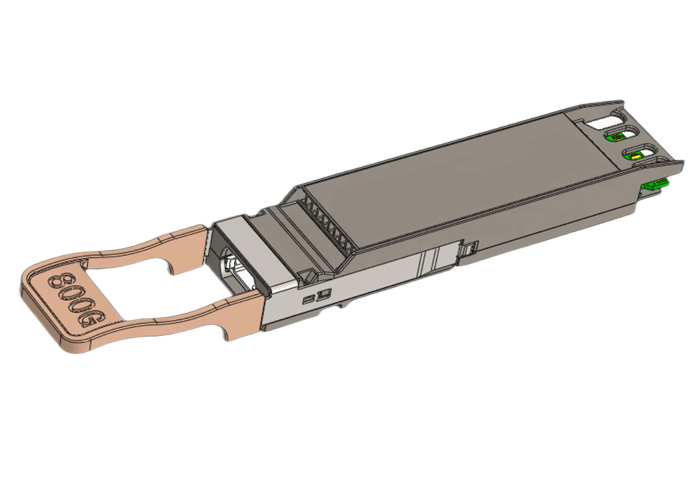

800G-2xFR4 OSFP112
800G-2xFR4 OSFP112 based on silicon photonics and EML. 8 channels of 100G-PAM4 electrical data,2 sets of 4 CWDM lanes MUX/DEMUX design,2km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.

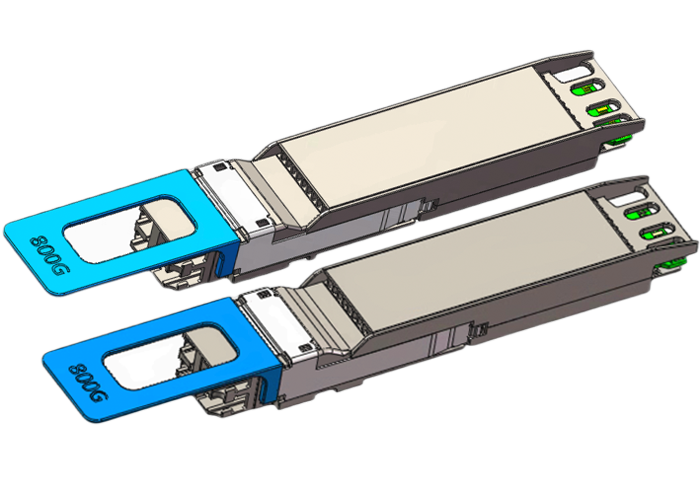

800G-2xDR4 OSFP112
800G-2xDR4 OSFP112 based on silicon photonics and EML. 8 channels of 100G-PAM4 electrical and optical parallel lanes, dual MPO-12/APC optical connectors, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.

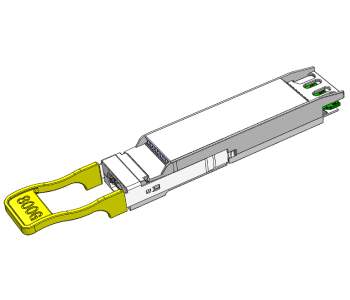

800G-DR8 OSFP112
800G-DR8 OSFP112 based on silicon photonics and EML. 8 channels of 100G-PAM4 electrical and optical parallel lanes,MPO16/APC optical connector, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.

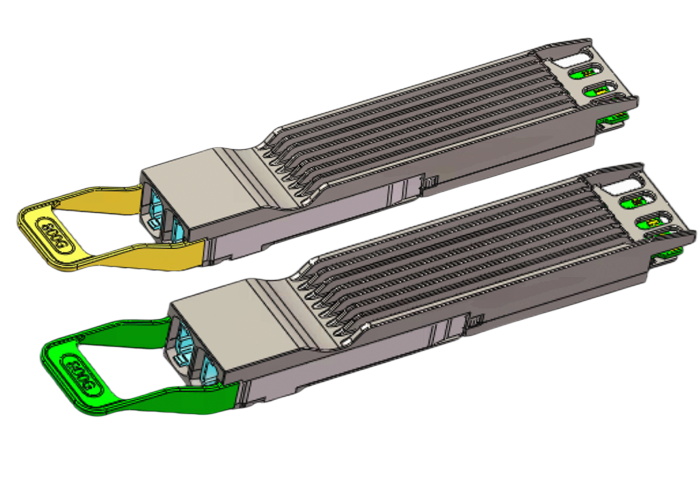

800G-2xDR4 OSFP112 LPO
800G-2xDR4 OSFP112 LPO based on silicon photonics w/o DSP. 8 channels of 100G-PAM4 electrical and optical parallel lanes,dual MPO-12/APC optical connectors, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and QSFP-DD MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.

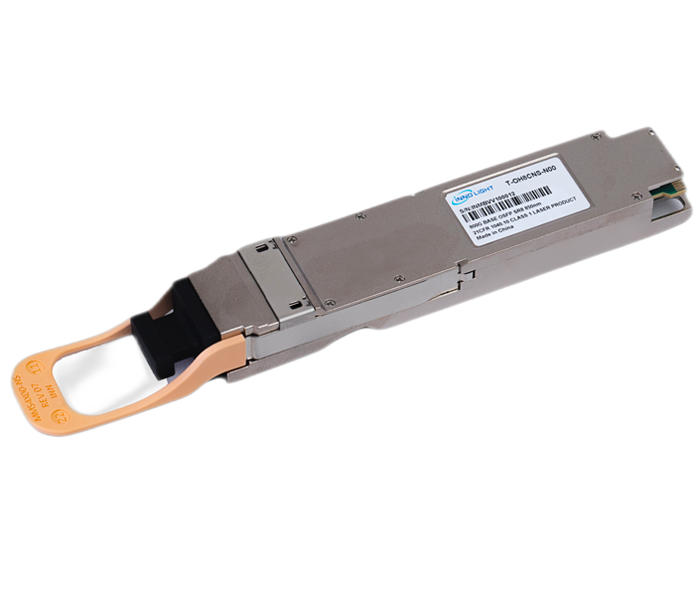

800G-SR8 OSFP112
800G-SR8 OSFP112 based on VCSEL. 8 channels of 100G-PAM4 electrical and optical parallel lanes,dual optical port of MPO-12, up to 30m reach via OM3 multimode fiber and 50m reach via OM4 multimode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP112 MSA standards, and support CMIS5.x. Products are mainly used in 800G Ethernet, data centers and cloud networks.
