400G-OSFP112

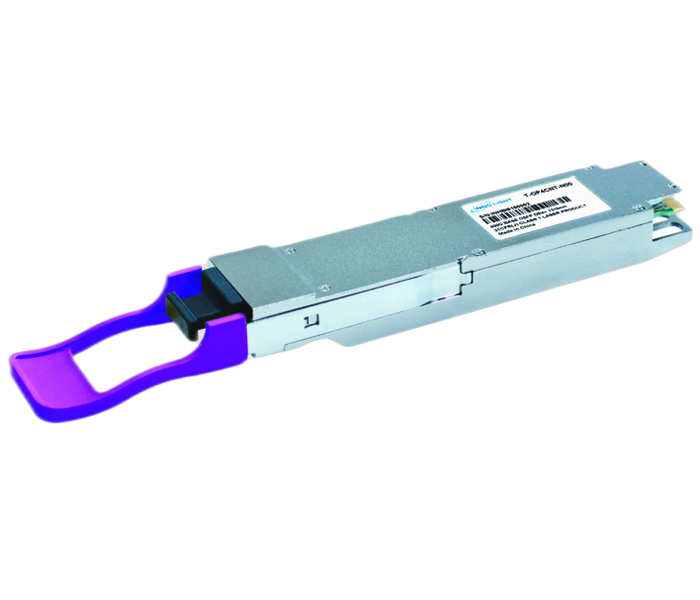

400G-DR4 OSFP
400G-DR4 OSFP112 based on Silicon Photonics or EML. 4 channels of 100G-PAM4 electrical and optical parallel lanes,Single optical port of MPO12, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3ck and OSFP112 MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.

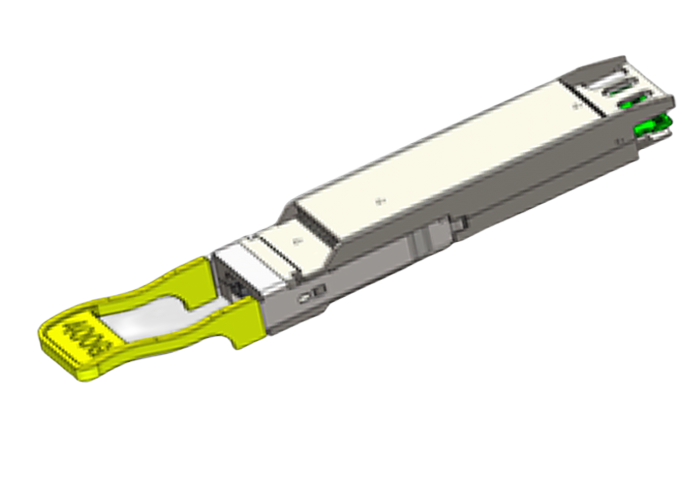

400G-DR4 OSFP LPO
400G-DR4 OSFP112 LPO based on Silicon Photonics.non-DSP design, 4 channels of 100G-PAM4 electrical and optical parallel lanes,Single optical port of MPO12, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with OSFP112 MSA standards, and support CMIS.
400G AOC OSFP
InnoLight's 400G OSFP112 AOC Series is based on silicon platform. These products feature four channels of 100G PAM4 electrical signals and four channels of 100G PAM4 optical signals, with a transmission distance of up to 100m over SMF. They have a case temperature range of 0℃-70℃ and comply with IEEE 802.3ck and OSFP MSA standards. The products are primarily used in 400G Ethernet, data centers, and cloud networks
