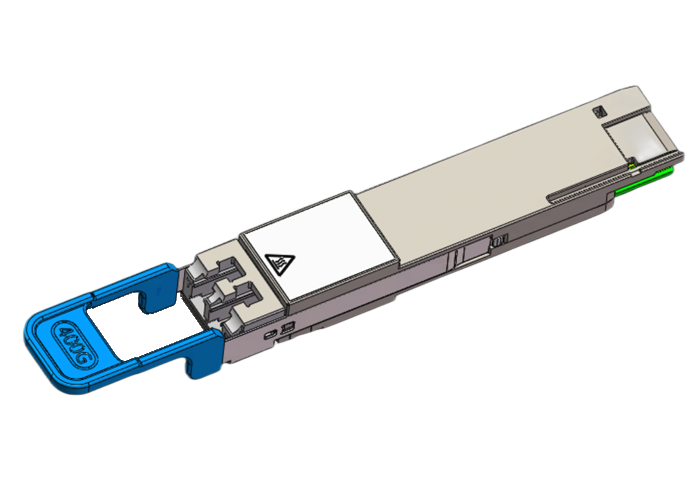

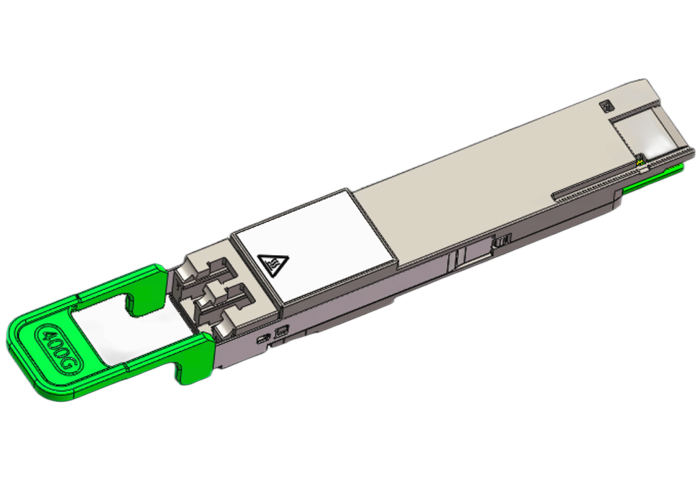

400G-FR4 QSFP56-DD

400G-FR4 QSFP56-DD based on EML, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes,duplex LC connector, 2km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3bs and QSFP-DD MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.

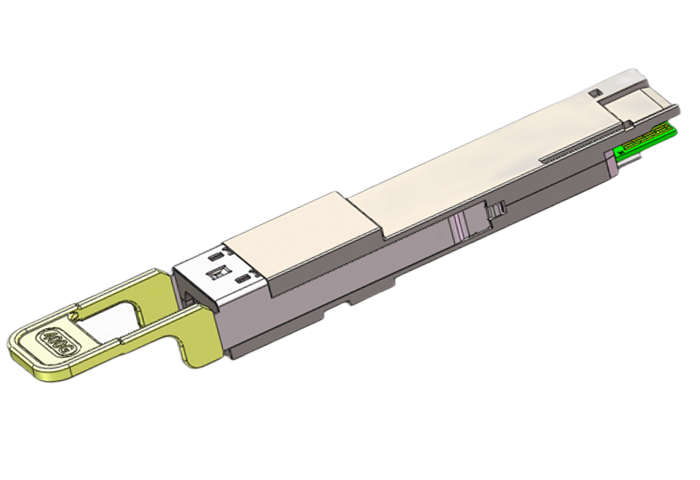

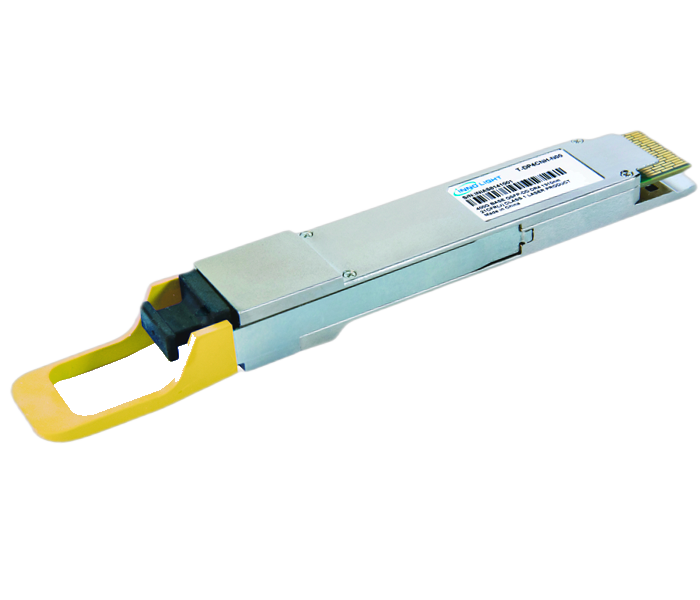

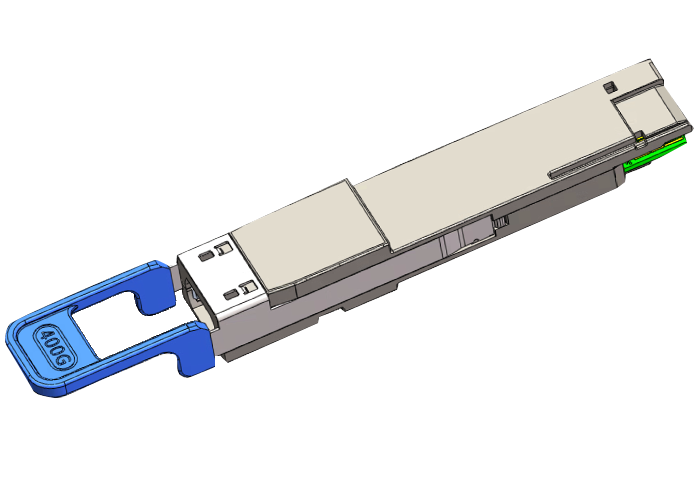

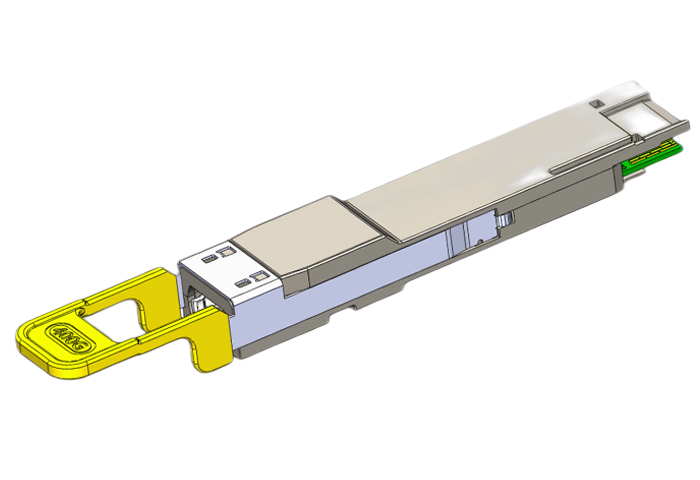

400G-SR4.2 QSFP56-DD

400G-SR4.2 QSFP56-DD based on VCSEL, 8 channels of 50G-PAM4 electrical and optical parallel lanes,single optical port of MPO-12, up to 70m reach via OM3 multimode fiber and 100m reach reach via OM4 multimode fiber,case temperature range of 0℃-70℃, comply with IEEE 802.3bs and QSFP-DD MSA. Products are mainly used in 400G Ethernet, data centers and cloud networks.

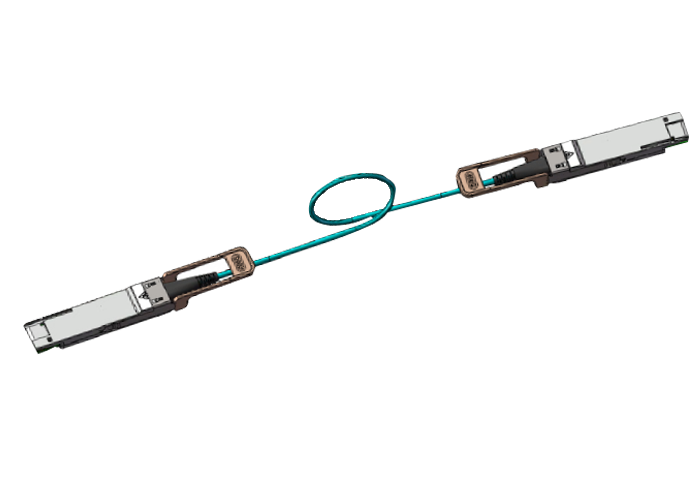

400G-AOC QSFP56-DD

InnoLight's 400G QSFP56-DD AOC Series is based on VCSELs. These products feature eight channels of 50G PAM4 electrical signals and eight channels of 50G PAM4 optical signals, with a transmission distance of up to 100m over OM3 MMF. They have a case temperature range of 0℃-70℃ and comply with IEEE 802.3bs and QSFP-DD MSA standards. The products are primarily used in 400G Ethernet, data centers, and cloud networks
