400G-OSFP56

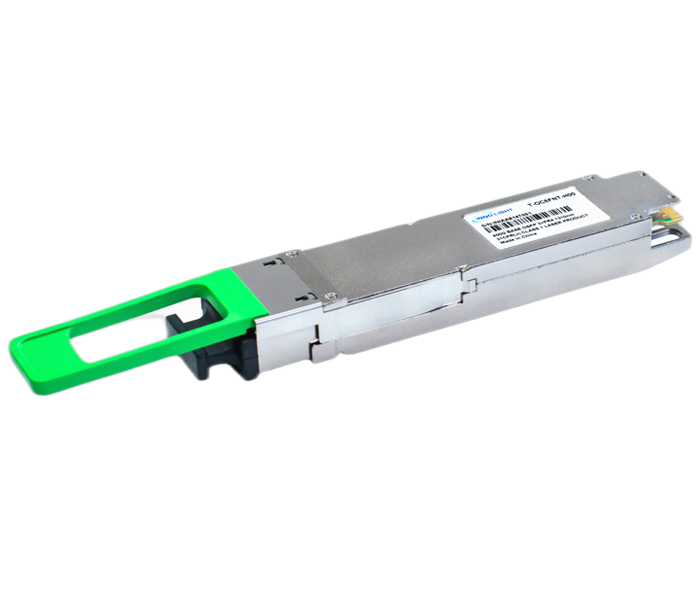

400G-LR4 OSFP56
400G-LR4 OSFP56 based on Silicon Photonics, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes,duplex LC connector, 10km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3bs and OSFP MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.

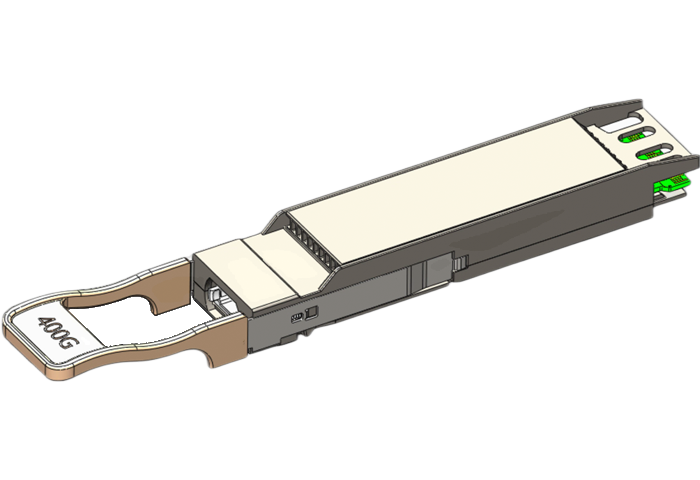

400G-FR4 OSFP56
400G-FR4 OSFP56 based on Silicon Photonics, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes,duplex LC connector, 2km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3bs and OSFP MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.
400G-2xFR4 OSFP56
400G-2XFR4 OSFP56 based on EML, 8 channels of 50G-PAM4 electrical and 8 channels of 50G-PAM4 optical parallel lanes,Dual mini-LC duplex connector, 2km maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3bs and OSFP MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.

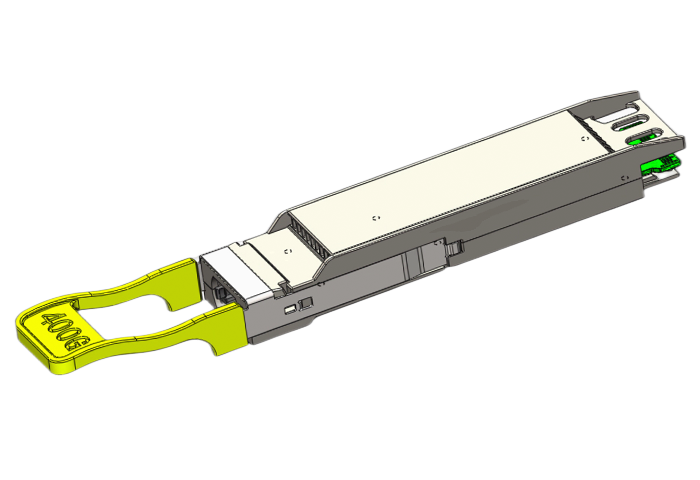

400G-DR4 OSFP56
400G-DR4 OSFP56 based on Silicon Photonics or EML, 8 channels of 50G-PAM4 electrical and 4 channels of 100G-PAM4 optical parallel lanes,Single optical port of MPO12, 500m maximum reach via single mode fiber,case temperature range of 0℃-70℃, comply with IEE802.3bs and OSFP MSA standards, and support CMIS. Products are mainly used in 400G Ethernet, data centers and cloud networks.
400G-SR8 OSFP56
400G-SR8 OSFP56 based on VCSEL, 8 channels of 50G-PAM4 electrical and optical parallel lanes,single optical port of MPO-16, up to 70m reach via OM3 multimode fiber and 100m reach reach via OM4 multimode fiber,case temperature range of 0℃-70℃, comply with IEEE 802.3bs and OSFP MSA. Products are mainly used in 400G Ethernet, data centers and cloud networks.
400G AOC OSFP56
InnoLight's 400G OSFP56 AOC Series is based on VCSELs. These products feature eight channels of 50G PAM4 electrical signals and eight channels of 50G PAM4 optical signals, with a transmission distance of up to 100m over OM3 MMF. They have a case temperature range of 0℃-70℃ and comply with IEEE 802.3bs and OSFP MSA standards. The products are primarily used in 400G Ethernet, data centers, and cloud networks
