100G-QSFP28
100G-LR4 QSFP28
InnoLight's 100G QSFP28 LR4 transceivers are based on DFB laser. These products feature four channels of 25G NRZ electrical signals and four channels of 25G NRZ optical signals, a duplex LC connector, a distance of up to 10km reach via single-mode fiber, a case temperature range of 0°C~70°C, and compliance with IEEE 802.3ba, and QSFP28 MSA standards. The products are mainly used in 100G Ethernet, data center, and cloud networks
100G-CWDM4 QSFP28
InnoLight's 100G QSFP28 CWDM4 transceivers are based on DFB laser. These products feature four channels of 25G NRZ electrical signals and four channels of 25G NRZ optical signals, a duplex LC connector, a distance of up to 2km reach via single-mode fiber, a case temperature range of 0°C~70°C, and compliance with IEEE 802.3bm, and QSFP28 MSA standards. The products are mainly used in 100G Ethernet, data center, and cloud networks
100G-PSM4 QSFP28
InnoLight's 100G QSFP28 PSM4 transceivers are based on DFB laser. These products feature four channels of 25G NRZ electrical signals and four channels of 25G NRZ optical signals, a MTP/MPO connector, a distance of up to 10km reach via single-mode fiber, a case temperature range of 0°C~70°C, and compliance with IEEE 802.3bm, and QSFP28 MSA standards. The products are mainly used in 100G Ethernet, data center, and cloud networks
100G-DR1/FR1/LR1 QSFP28
InnoLight's 100G QSFP28 DR1/FR1/LR1 transceivers are based on either EML or Silicon platform. These products feature four channels of 25G NRZ electrical signals and one channel of 50Gbaud PAM4 optical signal, a duplex LC connector, a distance of up to 10km reach via single-mode fiber, a case temperature range of 0°C~70°C, and compliance with IEEE 802.3cd, QSFP28 MSA, and 100G Lambda MSA standards. The products are mainly used in 100G Ethernet, data center, and cloud networks
100G-SR4 QSFP28
InnoLight's 100G QSFP28 SR4 transceivers are based on VCSEL laser. These products feature four channels of 25G NRZ electrical signals and four channels of 25G NRZ optical signals, a duplex LC connector, a distance of up to 70m reach via OM3 multimode fiber and 100m reach via OM4 multimode fiber, a case temperature range of 0°C~70°C, and compliance with IEEE 802.3bm, and QSFP28 MSA standards. The products are mainly used in 100G Ethernet, data center, and cloud networks

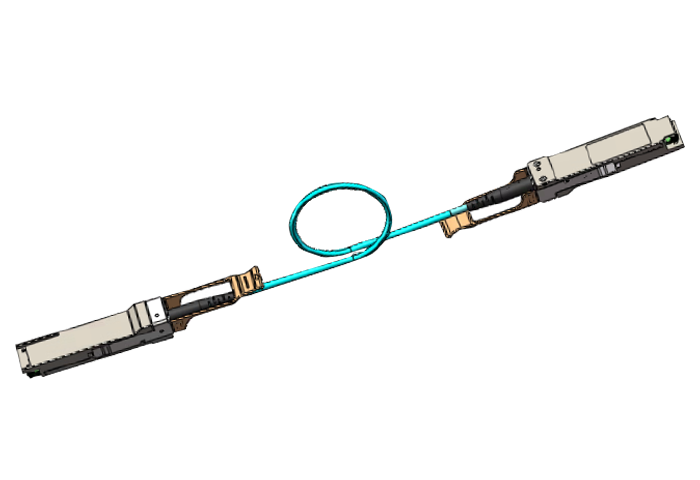

100G-AOC QSFP28
InnoLight's 100G QSFP28 AOC Series is based on VCSELs. These products feature four channels of 25G NRZ electrical signals and four channels of 25G NRZ optical signals, with a transmission distance of up to 100m over OM3 MMF. They have a case temperature range of 0°C~70°C and comply with IEEE 802.3bm and QSFP28 MSA standards. The products are primarily used in 100G Ethernet, data centers, and cloud networks
